Introduction to formal design of software

Introduction to formal design of software

Frédéric Herbreteau, Bordeaux INP/LaBRI (frederic.herbreteau@bordeaux-inp.fr)

Is this program correct?

def fact(n):
   return 1 if n == 0 else n * fact(n - 1)
  • What does it mean?
  • How to assert it?

Some examples where it matters

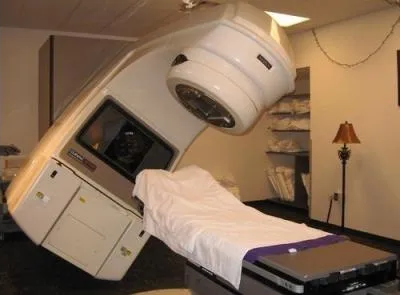

Therac-25 Radiation Overdosing (1985-87)

bg left:40% fit

  • Radiation machine for treatment of cancer patients
  • At least 6 cases of overdoses in the period 1985-1987
  • Three death cases
  • Issue: design error in the control software (race condition)

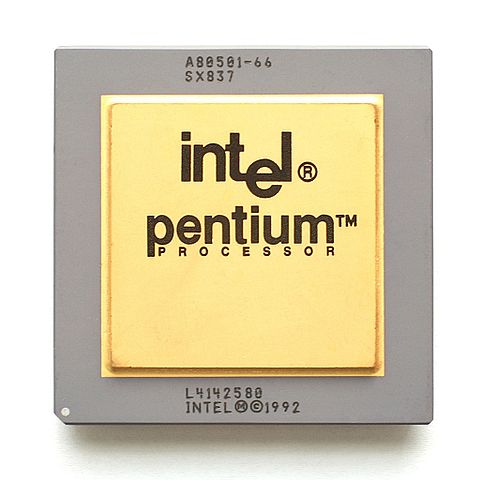

Pentium FDIV Bug (1994)

bg left:40% fit

  • FDIV= floating point division unit
  • 1 in 9 billion floating point dividers would produce inacurate results
  • Cost: 500 million US$ in replaced processors
  • Issue: flaw in a division table

Ariane V crash (1996)

bg left:40% fit

  • Cost: more than 500M US$
  • Issue: data conversion from 64-bit floating to 16-bit signed integer

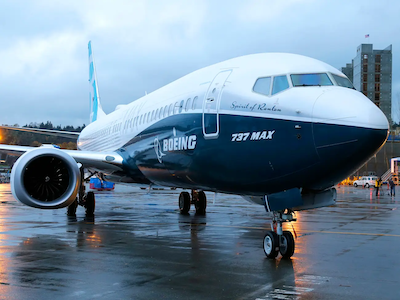

BOEING 737-MAX (2019)

bg left:40% fit

  • 356 people died (2 crashes)
  • Cost: tenths of billion US$
  • Issue: design of the flight control software (MCAS)

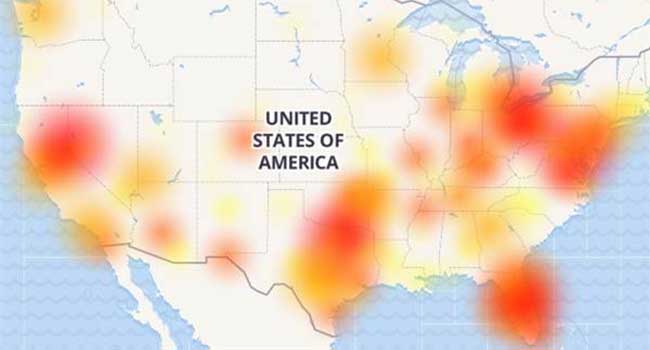

911 Outage (2020)

bg left:40% fit

  • 911 emergency call unavailable for ~1h
  • Patients at risk:
    • heart attack: 1h-3h
    • low oxygen saturation: <1h
    • acute bleeding: <1h
  • Issue: hard limit on an incoming-calls of 40 million (new calls dropped)

Also in 2014, 2018, 2019

Why it is difficult to verify computer systems?

  • Big number of components interacting together
  • Intrication between components (lack of abstraction at the specification or code level)
  • Focus on programming languages instead of mathematical concepts behind
  • Some bugs are difficult to detect with widespread development techniques (code reviews, testing, etc)

Main causes that lead to software bugs

  • Almost all errors were due to flaws in specification and not in coding
  • Reliability techniques (like redundancy) not effective for software
  • Assuming the risk decreases over time
  • Revision for undesired behaviours is very productive
  • Software reuse without safety analysis
  • Unnecessary complexity of software

(source: “The role of software in recent Aerospace Accidents”, Nancy G. Leveson Aeronautic and Astronautic Department MIT)

Formal verification at work

Provably secure cryptography

  • Everest project
    • verified implementations of protocols behind https (TLS, etc)
    • secure software actually deployed (Linux, Azure, Firefox, etc)
  • Cryptoline project
    • tool and a language for the verification of low-level implementations of mathematical constructs
    • verified implementations in OpenSSL, mbed TLS, etc
  • Fiat-Crypto
    • synthesizing correct-by-construction code from cryptographic primitives

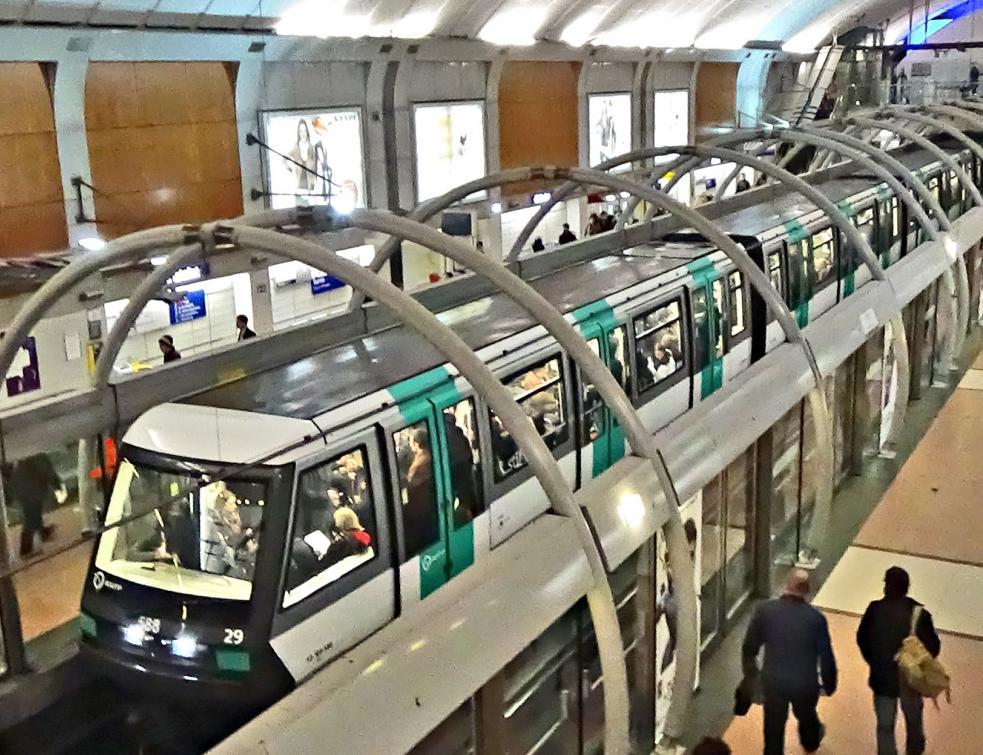

Paris metropolitan 14

bg left:33% fit

  • Driveless train system: automatic control and signaling
  • Developed using B-method
  • B: 115.000 lines, 27.800 lemmas
  • Ada: 86.000 lines
  • Automatically proven: 92%
  • Time to develop: ~4 years
  • Bugs development & tests: 0
  • Bugs since deployment: 0

Amazon Web Services

  • In 2013, S3 is 2.000.000.000.000 (2 trillions) objects, 1.1 million requests/second
  • Standard “verification” techniques in industry: Deep design reviews, Static code analysis, Fault-injection testing, …
  • DynamoDB: scalable, high-performance, high-availability storage
    • Informal proofs already found bugs
    • Formalization in TLA+ revealed a very subtle bug in the full fault-tolerance algorithm (has passed all reviews, 2 other bugs found later)
    • New features are now first modeled and checked in TLA+

human intuition is poor at estimating the true probability of supposedly “extremely rare” combinations of events

Return on experience (AWS)

[…] help engineers to get the design right. […] If the design is broken then the code is almost certainly broken. Coding mistakes extremely unlikely to compensate mistakes in design.

[…] gain a better understanding of the design. […] can only increase chances that they will get code right.

[…] write better assertions […], a good way to reduce errors in code. Formal methods help engineers to find strong invariants, so formal methods help to improve assertions, which help improve the quality of code.

(source: Chris Newcombe, Rath Tim, Fan Zhang, Bogdan Munteanu, Marc Brooker, and Michael Deardeuff. Use of Formal Methods at Amazon Web Services. 2014)

Sel4 operating system kernel

  • OS kernel that ensures strong separation between critical and non-critical functionnalities with state-of-the-art performances
  • Deployed in many critical systems: automotive, aerospace, IoT, etc
  • Formally verified for functionnal correctness, binary correctness, security and system initialisation
  • Awards: MIT Technology Review’s TR10 (2011), ACM SIGOPS Hall of Fame (2019), ACM Software System (2022), DARPA Game Changer Award for HACMS (2023)

“… there have been no functional correctness defects in verified code since the functional correctness proof completed in 2009 — more than 15 years of tests, use, and deployment …” (cf. https://sel4.systems/Verification/)

CompCert

  • Buggy compilers may silently introduce errors in otherwise correct programs

We have randomly generated C programs, and used them to find compiler bugs. So far, we have reported >325 previously unknown bugs. Every tested compiler has been found to silently generate wrong code on valid inputs (source: PLDI’11)

  • CompCert: formally verified, realistic C compiler with optimizations

Semantic preservation theorem: for any source program S, if the compiler applied to S produces code C without reporting a compile-time error, then the observable behavior of C is one of the possible observable behaviors of S

  • 2022 ACM SIGPLAN Programming Languages Software Award
  • 2021 ACM Software System Award

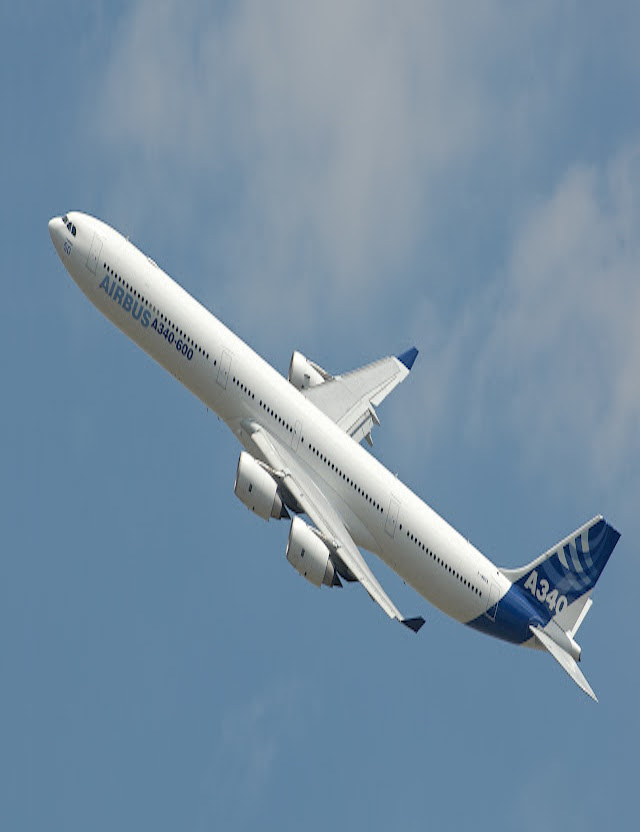

Airbus

bg left:33% fit

  • Development of Level A controllers for A340/600 series
  • 70% of code generated automatically
  • Quick management of requirements changes
  • Major productivity improvement (new project = software $\times$ 2)
  • Esterel SCADE has been adopted for most of on-board computers of the A380

What are formal methods?

Specification

  • Giving precise statement of what the system must do while avoiding constraints on how it is achieved

Example: everybody should be happy

  • Informal specifications are often ambiguous and imprecise

Example: Compute factorial of n

  • Formal specification is a mathematical object. One can analyse it, manipulate it, reason about it

Example: PRECOND: $n \in \mathbb{N}$ POSTCOND: returned value is $n!$

Formal methods

  • Formal methods allow to mathematically reason about systems

Example: \(\lbrace n \in \mathbb{N}\rbrace \ \texttt{ def fact(n): return 1 if n == 0 else n * fact(n-1) } \ \lbrace r=n!\rbrace\)

  • Problem: formal specifications are typically large (thousands of lines)
  • Automatic techniques are crucial to be able to analyse real-life systems

Automatic verification is impossible

bg left:33% fit

Program termination is not decidable (Alan Turing, 1936) There is no algorithm to decide if a Turing Machine stops on the empty input

Hence, verification should be:

  • either incomplete,
  • or not fully automatic

Methods of system verification

Peer reviewing

  • Manual code inspection
  • On average 60% of errors caught
  • Subtle errors (concurrency, algorithm defects) hard to catch
  • Used in 80% of all software engineering projects
  • Refinement of this method: parallel developpement

Testing

  • 30%-50% of development cost
  • Programmers have to provide insights what to test, and what should be system response
  • When to stop testing?
  • Formal specifications help here:
    • One of the most cost-effective uses of formal specifications
    • New tools provide as good coverage as manual test cases, and they avoid programming test cases

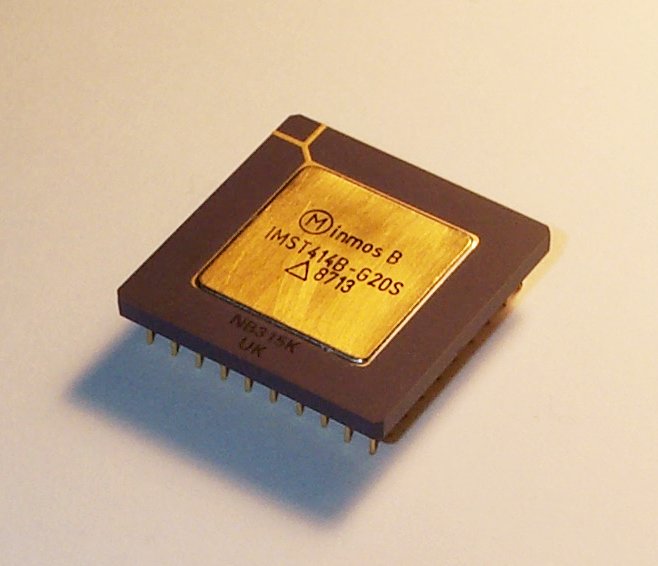

Theorem proving

  • Doing large proofs semi-automatically

Example: Induction proof, Floyd \& Hoare style proof

PRECOND: $n \in \mathbb{N}$ POSTCOND: $return = n!$

def fact(n):
  return 1 if n == 0 else n * fact(n - 1)

$\frac{\lbrace n=0\rbrace \ \texttt{fact(0)} \ \lbrace 1 = 0!\rbrace \quad \lbrace n > 0 \, \land \, fact(n-1) = (n-1)!\rbrace \ \texttt{fact(n)} \ \lbrace n * fact(n-1) = n!\rbrace}{\lbrace n \in \mathbb{N}\rbrace \ \texttt{def fact(n): return 1 if n == 0 else n * fact(n-1)} \ \lbrace return = n!\rbrace}$

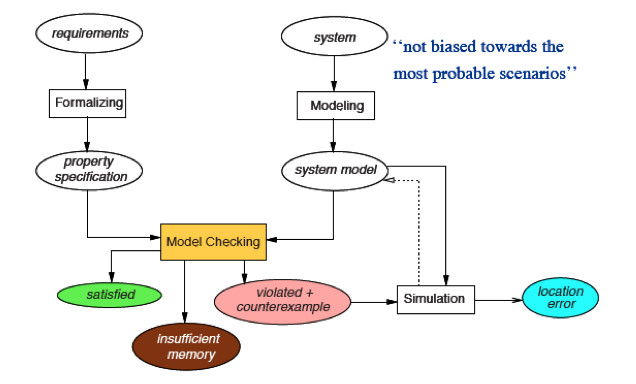

Model-checking

  • inputs: finite state model of the system + set of required properties
  • makes formal methods available to broad audience

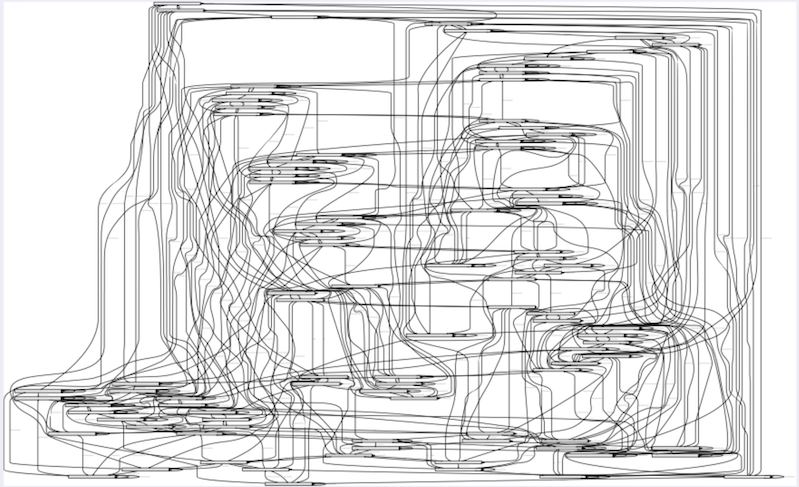

Finite state model

Properties

  • The program terminates
  • The programe does not terminate
  • The computed value is correct
  • A sequence of events is correct
  • Mutual exclusion
  • No deadlock
  • No starvation

Pros vs. Cons of model-checking

  • Advantages:
    • Widely applicable
    • Ensure specifications are correct before the system is built
    • Fully automatic
    • Produces counterexample
    • Sound and interesting mathematical foundations
  • Drawbacks
    • Analyses of an abstraction of the system
    • Focused on control and not data oriented applications
    • High algorithmic complexity

Milestones towards model-checking

  • Mathematical program correctness: Church, Turing (1949)
  • Syntax-based techniques for sequential programs: Floyd, Hoare (1969)
  • Invariant method and program refinment: Dijkstra, Hoare (70’s)
  • Program logics (70’s)
    • Algorithmic and dynamic logics
    • Hoare logic
    • Linear temporal logic
  • Model-checking using temporal logics: Clarke \& Emerson (1981), Sifakis (same time)
    • ACM Turing award 2007 “…highly effective verification technology…”

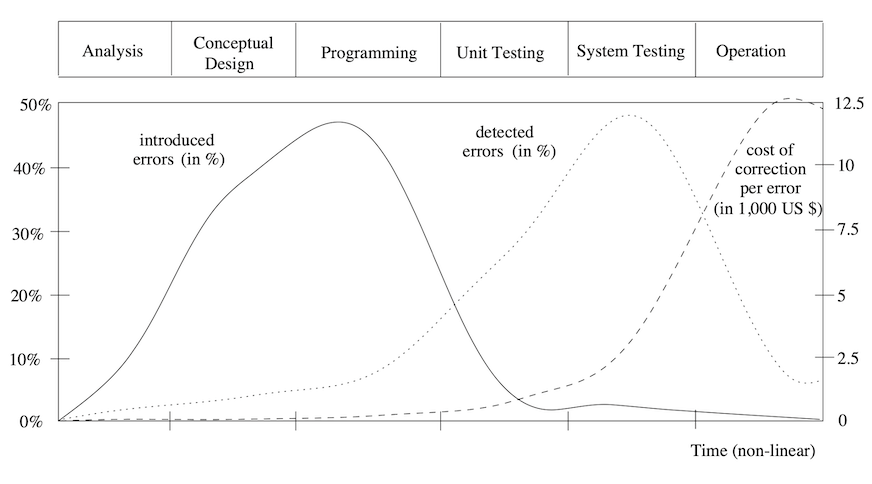

Get bugs as soon as you can

(source: “Principe of Model-Checking”, C. Baier and J.P. Katoen, 2007)

Conclusion

Summary

  • Any verification using model-based techniques is only as good as the model of the system (abstraction)
  • Formal methods are not silver bullet to eliminate errors
  • They are not beyond budget of developers
  • They are the only practical means to demonstrate the absence of undesired behaviour
  • The process of developing a specification is often the most valuable phase

Who uses formal methods?

  • Microsoft Azure / Amazon S3 (cloud computing)
  • MongoDB Inc (Mongo DB replication protocol)
  • Elastic (Elastic search replication protocol)
  • Intel (processors)
  • Airbus / Dassault (aircrafts, systems 3DS)
  • ConsenSys (blockchain, smart contracts)
  • Oracle (“Parfait” static analysis)
  • Framatome (nuclear reactors)
  • Bosch (automotive)
  • …

What is next?

  • Test vs. Model-checking vs. Proof
  • Modelling and abstraction with TLA+
  • Specification and verification
  • Formal design of programs
  • Detecting and solving bugs using model-checking
